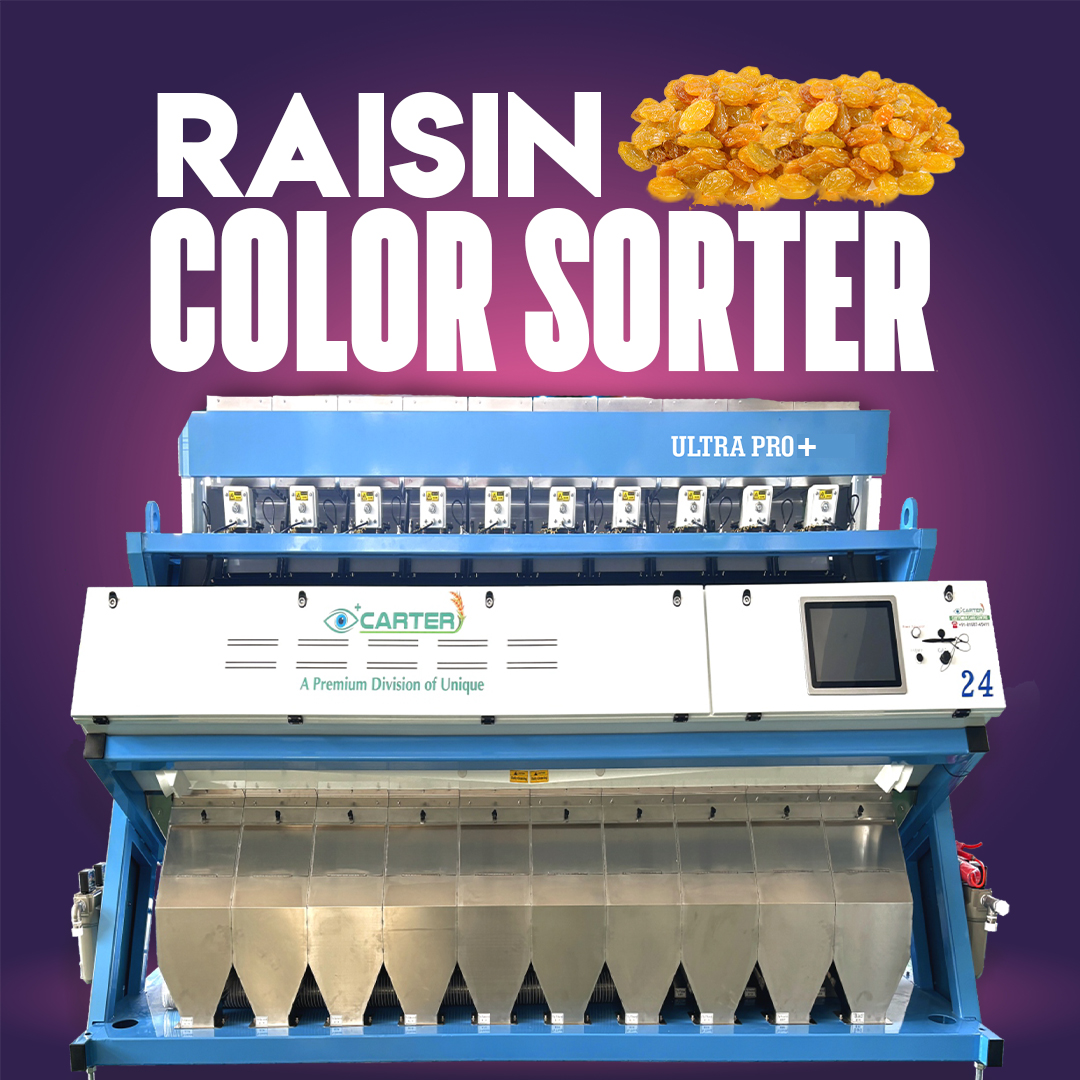

Raisin Color Sorter

The Evolution of Quality Control: The Raisin Color Sorter

The Raisin Color Sorter represents a pinnacle of agricultural engineering, serving as a specialized industrial solution meticulously designed to elevate the standard of dried fruit production. By leveraging high-speed imaging and sophisticated processing algorithms, these machines transform a raw, heterogeneous harvest into a uniform, premium product suitable for global export and high-end culinary use.

Technical Precision and Methodology

At the heart of a modern color sorter is an array of high-resolution CCD or CMOS cameras, often supplemented by InGaAs (Indium Gallium Arsenide) infrared sensors. As raisins cascade down a high-velocity chute or across a conveyor belt, the system analyzes each individual unit in mid-air.

The sorting process involves several critical stages:

Chromatic Analysis: The machine evaluates the surface hue of every raisin, distinguishing between the desired deep purples or golden ambers and undesirable shades.
Defect Detection: Beyond simple color, the sorter identifies "off-grade" attributes such as sun-scorched skins, immature green fruit, or internal mold that may not be visible to the naked eye.
Foreign Material Removal: Advanced sensors detect non-organic contaminants, including stones, stems, capstems, and glass fragments, ensuring the highest level of food safety.
Pneumatic Rejection: Once a defect is identified, a precise blast of compressed air from a bank of high-speed ejector valves strikes the specific raisin, knocking it out of the main stream while allowing the "accepted" fruit to continue undisturbed.

Strategic Importance in the Supply Chain

The integration of color sorting technology is no longer an optional luxury but a necessity in a competitive marketplace. Manual sorting is not only labor-intensive and prone to human error but also incapable of matching the sheer volume and consistency required by modern food safety regulations.

By implementing these automated systems, processors achieve:

Enhanced Purity Levels: Reaching up to 99.9% purity, which is essential for meeting the stringent "Grade A" requirements of international markets.
Minimized Product Loss: The surgical precision of the air ejectors ensures that healthy raisins are not accidentally discarded along with the rejects, maximizing the total yield.
Brand Protection: Ensuring that every box of raisins reaching the consumer is visually appealing and free from hazardous materials protects the reputation of the producer and prevents costly recalls.

In essence, the Raisin Color Sorter acts as the final gatekeeper of quality, bridging the gap between the unpredictability of the vineyard and the exacting standards of the modern consumer's pantry.

Enquiry

Product Specification

Feature	Specification Details
Sensor Technology	High-resolution Trichromatic CCD / CMOS Cameras (up to 5400 pixels)
Spectral Range	Visible light (RGB) + NIR (Near-Infrared) for internal defect detection
Sorting Accuracy	$\geq 99.99\%$
Core Processor	FPGA or DSP-based high-speed processing with HSV color space algorithms
Ejection System	High-frequency intelligent pneumatic valves (1.2ms response time)
Throughput	1.0 to 12.0 Tons per Hour (dependent on chute/channel configuration)
Materials Detected	Discolored fruit, stems, capstems, stones, glass, and plastic
Interface	Industrial LED touchscreen with cloud-based remote monitoring
Power Supply	220V - 380V (50/60 Hz)
Air Consumption	1.5 - 4.5 $m^3/min$ (based on contamination levels)

Core Performance Modules

Intelligent Vision: Utilizes AI deep learning to differentiate between natural skin variations and actual rot or sun-scorch.
Precision Ejectors: Ultra-low carryover ratio ensures that "good" fruit is not accidentally rejected during the removal of defects.
Specialized Chutes: Hard-anodized, U-grooved, or flat-plate chutes designed specifically to prevent raisin sticking and ensure a steady laminar flow.
InGaAs Technology: Optional Indium Gallium Arsenide sensors for detecting foreign materials that are the same color as the raisins but have different density or moisture content.
